POWER:   ELECTRIC-48 V (AC)
Motor Power AC:  6 kW (8.20 hp) Rated, 12.46 kW (16.95 hp) Peak

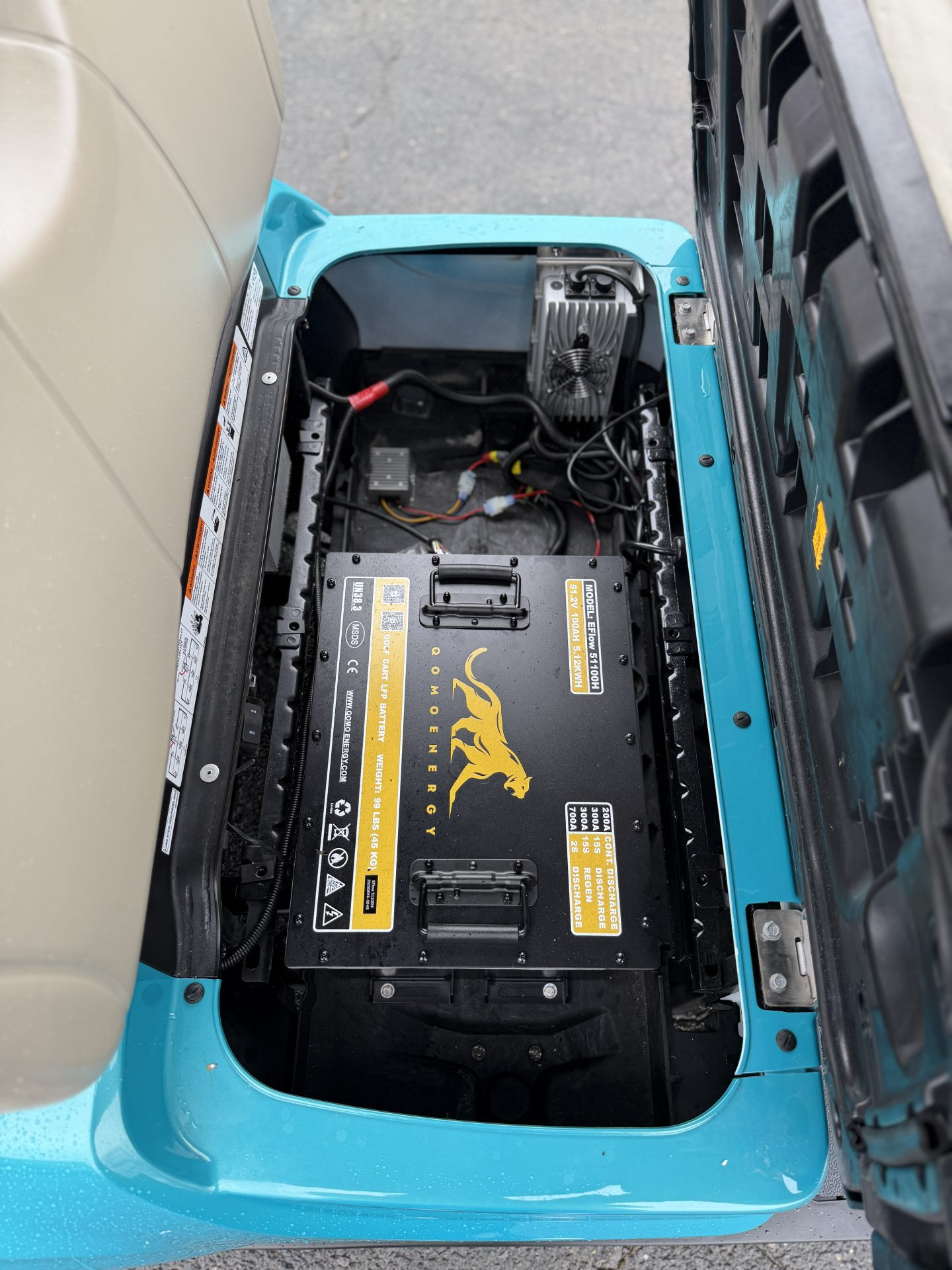

Battery:   UN38.3 compliant Lithium Battery Package (5.4 kWh / 105 Ah)
Charge Unit:  Onboard Charge Unit 110-220 VAC@12A/9.5A 18A/48V
Motor Control Unit:  AC 450 A

ELECTRICAL SYSTEM

Motor:  48 V AC induction 3-phase high efficiency motor
Electronic Control Unit: 48 V high current capacity and protected programmable control unit
Charger:   48V-18A , 93% efficiency, programmable, current protection, onboard charge unit
Vehicle Harness:   Automotive-grade harness with IP67-rated protected connectors, high temperature and current resistance

STEERING & SUSPENSION SYSTEM

Steering:  Self-compensating, double reduction, no lubrication required, helical rack and pinion
Suspension Front:  Fully independent, automotive type, McPherson style strut suspension
Suspension:  Rear Semi independent, swing arm with coil springs over hydraulic shock absorbers

BRAKE SYSTEM

Service Brake:  4-wheel hydraulic disc brake system
Parking Brake:  Electromagnetic parking brake

BODY & CHASSIS
Body:  Naturally colored Thermoplastic ABS White, Midnight Blue, Black
Chassis:  Automotive style steel frame with high corrosion resistance Sanding/E-coating/Static Wet Paint/ PVC Coating that meets ISO 9227 and ASTM B117 testing standards

PERFORMANCE

Max. Forward Speed:  25 mph
Max. Reverse Speed:  5 mph
Range:  5.4 kWh (105 Ah) Lithium Battery Package – 34 mi (When driven on a flat track)

Max. Gradeability:  25%
Charge Time:  5.4 kWh (105 Ah) Lithium Battery Package 80% – 3 hrs | 100% – 5 hrs
Turning Radius:  9.8 ft

GENERAL

Curb Weight:  Standard vehicle with Lithium Battery Package – 1241 lbs
Passenger Capacity:  2+2 Passenger
Load Capacity:  881 lbs
Tire Dimensions:  22 x 9.50-10 Off-Road Tire

DIMENSIONS Standard Vehicle

Length:  112.5 in
Width:  47.8 in
Height:  83.3 in
Wheelbase:  64.5 in
Ground Clearance:  10.3 in

WARRANTY

2 years full warranty (Except wearable items)
5 years limited warranty (Motor and motor control unit)
70% performance at min. 4000 cycles for lithium battery
package
